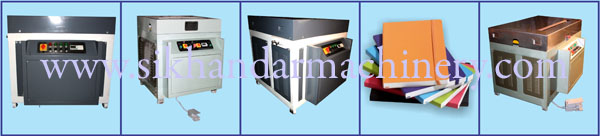

NOTE BOOK BACK SQUARING MACHINE

SOME FEATURES:
Exercise Notebook Spine Flatten Edge Squaring Press Hydraulic
Square shape of spine similar to Perfect Bound Books.
Open books flat without any damage to spine.
Print on the spine section.
Square books are easy to handle for stacking and packing. The book/exercise Notebook is hydraulically pressed by pressure plates to clamp the book/exercise Notebook, spine is pressed by hydraulic pressure (adjustable to suit paper used) which is controlled by PLC (Programmable Logic Control) that can be set to desired results. The machine in Automation mode operate automatically, (a) first press the notebooks then the rollers flatten the edge, (b) the first press get released slightly and again presses the notebooks and the rollers again flatten the edge. This completes One Cycle. It hardly takes a few seconds.

Technical Specifications :

Model	SM70SQ	SM80SQ	SM90SQ	SM100SQ
Book Width	700 mm	800 mm	900 mm	1000 mm
Book Spine(Min-Max)	5-70 mm(Best Results)	5-70 mm(Best Results)	5-50 mm(Best Results)	5-50 mm(Best Results)
Book Height(Min)	100 mm	100 mm	100 mm	100 mm
System Clamp Pressure	upto 10 tons	upto 10 tons	upto 10 tons	upto 10 tons
Squaring Pressure	3500 Kg	3500 Kg	3500 Kg	3500 Kg
Hydraulic Oil Capacity	80 Ltrs	90 Ltrs	100 Ltrs	100 Ltrs
Electrical Load/Motor	2.25 KVA/3 H.P.	2.25 KVA/3 H.P.	2.25 KVA/3 H.P.	2.25 KVA/3 H.P.
Electrical Supply	400/440 AC 50Hz 3 Ph	400/440 AC 50 Hz 3 ph	400/440 AC 50 Hz 3 ph	400/440 AC 50Hz 3 Ph
Overall Dimentions(WxDxH) May vary	Front107xBack106 x Height96 cm	Front117xBack106 x Height96 cm	Front127xBack106 x Height96 cm	Front137xBack106 x Height96 cm
Net Weight/Gross (approx)	900/1100 Kgs	1000/1200 Kgs	1100/1300 kgs	1200/1400 kgs
