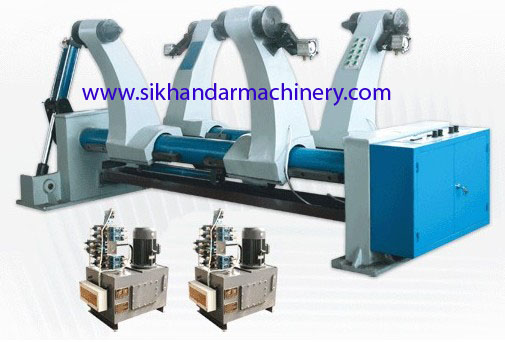

HYDRAULIC MILL ROLL STAND

Description:

1.Equipped with four arms, support two sets of mill roll paper, non-stopping in changing the roll paper.

2.Hydraulic drive to lifting & lowering, clapping and correcting.

3.The paper tension is controlled by pneumatic disk brake and multi-points pneumatic brake.

4.Adopt expandable chuck to improve efficiency.

4.Maximum load-weight: 3T

Spec of stand:

1, Reel Stand driven by hydraulic

2, Kraft paper range

Width: Max:1900mm Min:900mm

Diameter: Max: 1400mm Min: 350mm

3, Max load-bearing: 4000kg (One side)

4, Main roller dia.: 219mm

5, Pneumatic Source Pressure(Mpa): 0.4---0.8Mpa

6, Power: 380V 50Hz

Spec of hydraulic system:

1, Working Pressure(Mpa):16---18Mpa

2, Hydraulic Cylinder Range(Lift/Down): 100×440mm

3, Hydraulic Cylinder Range(Clamp/Loosen): 63×700mm

4, Hydraulic Station Motor Power: 4KW Short Time(S2) Working Type Nominal voltage:380V 50Hz

5, Hydraulic Station Electromagnetic Valve Working Power: 220V 50 Hz

Introduction

1. Lifting and lowering, open-close and right-right adjustments of arms are operated by hydraulic system

2. Tension control by air brake system

3. Hydraulic station made in famous brand

4. Two work positions,may clamp two scroll at the same time, may load or unload scroll without stop the production.

5. Inflation top for reels to grip reel type, see the picture 4, save paper.

6. The pick-up cylinder adopted with cast iron curve structure, slinky, firm and steady.

7. Main bought-in parts, raw materials and origin:

a. Main shaft of mill roll stand: Qualified thick seamless steel pipes.

b. Wall plate two sides and clamp arms: HT200 casting.

c. Bearing: adopts.

d. electric system.

e. Pneumatic parts.

f. Hydraulic parts.
