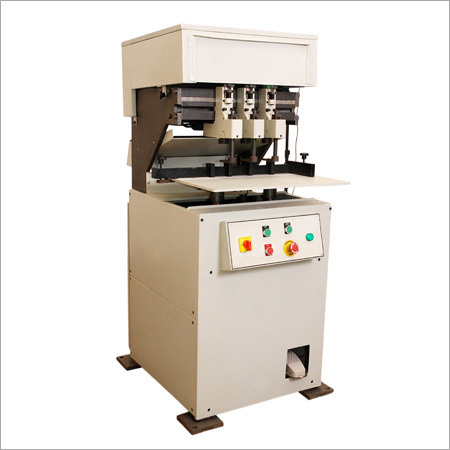

High Speed Drilling Machine

Our high speed drilling machine is a type of automatic paper drilling machine used to punch holes in the edge of the pages. It has four drill bits which are driven by a high-speed rotary motor. The machine completes drilling operation by automatic movement of work bedplate. It has become the ideal equipment of drilling and binding for all kinds of binderies and gifts companies.

Features of High Speed Drilling Machine
1. The bits are clamped by drill, removing the problems such as unstable bit clamping.
2. It is equipped with four drill bits, resulting in high efficiency.
3. The working Response head can move from left to right to extend the distance between holes.
4. The machine is of simple operation, easy adjustment, and low failure rate.

Technical Data of High Speed Drilling Machine

Drilling Diameter

Φ3~Φ10 mm

Paper Thickness

0.05~0.25 mm

Hole Distance

42~260 mm

Max Throat Depth

120 mm

Power

2.2 kw

Drilling Hole Thickness(Max)

0-50mm

Dimensions

1120×970×1700 mm

Weight

460kg

Sikhandar Machinery Co. is one of the foremost high speed drilling machine manufacturers and suppliers in India Due to our  years of experience and continuous efforts, we have received good Response and our products have obtained quality name in the market. (Reliable quality and stable performance).
