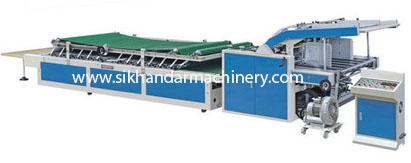

FLUTE LAMINATOR SEMI AUTOMATIC

Products

Details

Parts Introductions:



Electrical Control Unit





Transmission Unit





Glue and Compress stacking Unit

All the electrical power adopted the world renowned brands, steady and durable, frequency speed governing, lower noise and energy conservation.

It can achieve the location and correction of the cartons at the high speed of transmitting.

The glue-wheel made of stainless steel and anilox roller glues, it can reduce the quantity of the glue and improve the intensity of the cartons. Deft design keep the carton perfect.

 Top Feeding Unit

 Bottom Feeding Unit

 Locating Unit

The motor blade adopted the world's most advanced similar structure to the cutting machine .It is easy to adjust ,transmitting smoothly with different types of papers including: double papers Alice papers and the papers of laminating varnishing etc, also have the pre-code permits structure.

This unit adopted the  unique electrical transmission structure, ensure the high speed of sheet conveying and accuracy and not deflect. It also imported the overseas transmitting belt, so it has strong adaptability of the Alice of corrugated paper.



This unit adopted the world's most advanced location spirit of Laminating machine, make track for the fixed position, and it can solve the problem of deformation caused by the impact of GPS positioning, making the speed much more rapidly.





Main Technical Parameter:

Model

1300

1450

1600

Maximum size(W*L)

1300*1100mm

1450*1100mm

1600*1400mm

Minimum size(W*L)

350*350

350*350mm

450*450mm

Laminate precision

≤±1.5mm

≤±1.5mm

≤±1.5mm

Speed

6000 sheets / h

6000 sheets / h

6000 sheets / h

Total power

4.5kw

4.5kw

4.5kw

Machine size

8.8*1.95*1.5m

8.8*2.2*1.5m

8.8*2.5*1.5m

Total weight

3T

3.2T

3.5T
