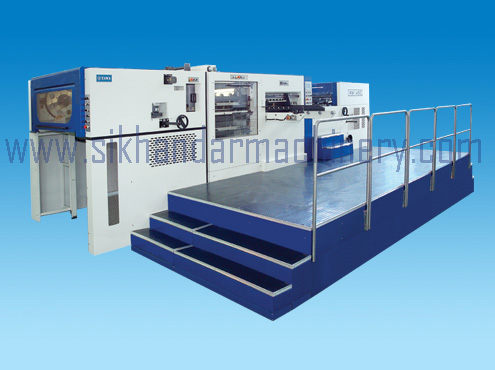

AUTOMATIC DIE CUTTING MACHINE

Products

Details

Full Automatic Creasing and Die Cutting Machine is necessary equipment for die cutting and creasing on paper-made packaging articles such as paper cartons, trademarks, paper boxes and invitation cards.



The advanced paper feeding mechanism ensures high-speed running as well as stable and reliable performance. The imported Italian pneumatic clutch and brake provides fast reaction, stability and reliability.



High-accuracy intermittent mechanism (made in Taiwan) ensures positional accuracy and stability. The loading/unloading paper mechanism improves production efficiency as it can be used without shutting the machine down.



The use of the advanced electrical system ensures stability and reliability. Automatic adjustment of the measurement, leveling and pressure systems is also provided.



The double-piece detection device uses a unique intelligent non-adjustment system.



Main technical parameters:

Model

HD1100

HD1050

Max. sheet size (mm)

1100×800

1050×750

Min. sheet size (mm)

550×400

450×370

Min. gripper length (mm)

5

8

Max. pressure (mt)

300

300

Max. paper thickness (mm)

0.2-1.5

0.2-1.5

Speed (sheets/h)

5000

7000

Main motor (kw)

15

15

Total power (kw)

20

20

Gross weight (mt)

18

16
